Making sure your system is programmed correctly is key to getting the best softened water experience. Ready to program your water softener? Follow the instructions below to begin.
Click on your model below.

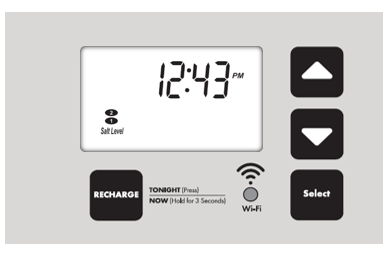

NSC22 / NSC31 / NSCWC
1. Plug the power supply into the outlet. You'll hear a beep, followed by some brief model information. Next, the screen will display the 'Present Time':
2. Present Time - use the Up/Down arrows to set the correct time. Be sure to check AM/PM. Press Select.
3. Hardness - the softener communicates in GPG. If the water supply contains clear water iron, add 5 to the hardness number for each 1 ppm of iron. Press Select.
4. Set Recharge Time - program for a time when the customer will not be using water (i.e. 2 AM). Press Select to return to the home screen.

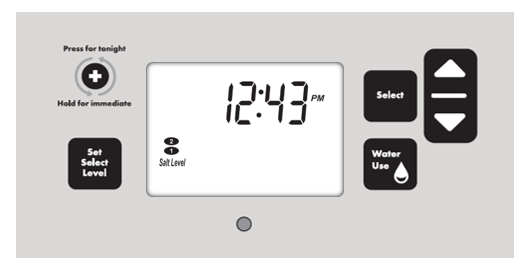

NSC42
1. Plug the power supply into the outlet. You'll hear a beep, followed by some brief model information. Next, the screen will display the 'Present Time':
2. Present time - use the Up/Down arrows to set the correct time. Be sure to check AM/PM. Press Select.
3. Hardness - the softener communicates in GPG. If the water supply contains clear water iron, add 5 to the hardness number for each 1 ppm of iron. Press Select.
4. Set Recharge Time - program for a time when the customer will not be using water (i.e. 2 AM). Press Select to return to the home screen.
5. Set Salt Type - you can set this to NaCl or KCl. Press Select to return to the home screen.

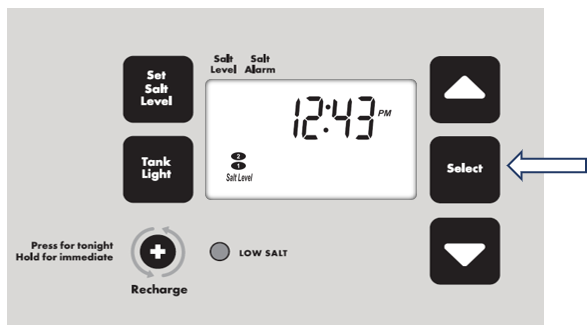

NST30ED / NST45ED1 / NST70ED1
1. Plug the power supply into the outlet. You'll hear a beep and a model code will display for a few seconds, followed by the 'Present Time' Screen.
2. Present time - use the Up/Down arrows to set the correct time. Be sure to check AM/PM. Press Select.
3. Hardness - the softener communicates in GPG. If the water supply contains clear water iron, add 5 to the hardness number for each 1 ppm of iron. Press Select.
4. Set Recharge Time - program for a time when the customer will not be using water (i.e. 2 AM). Press Select to return to the home screen.
